The dovetail joint has long been regarded as the hallmark of fine craftsmanship. It marks the transition from simply assembling timber to practising true joinery. When cut well, dovetails are both mechanically strong and visually refined, the interlocking tails and pins resist pulling forces even without glue.
Yet clean results are never accidental. They depend on using the right dovetail joinery tools and understanding why each one matters. The tools themselves do not create skill, but they remove the barriers to learning it.
Why Dovetails Define Fine Craft
Unlike mechanical fixings, dovetails rely on geometry. The angled tails lock into the pins, creating a joint that strengthens under tension. This is why they are traditionally used for drawers, boxes, and carcass construction.
Machine-cut joints may look uniform, but hand-cut versions allow for subtle variation, narrower pins, custom spacing, and proportions suited to the piece. That individuality is what gives furniture character.
To achieve this, your dovetail joinery tools must support precision at every stage: layout, cutting, and refinement.
The Layout Kit: The Foundation of Accuracy in Dovetail Joinery Tools
Every successful dovetail begins long before the saw touches the wood. Layout determines the final fit. In fact, the marking knife, not the saw, ultimately decides how tightly the joint closes.
Why a Pencil Is Not Enough
A pencil line is too thick for fine joinery. Graphite sits on the surface and offers no physical reference for your tools. In contrast, a marking knife severs the wood fibres cleanly, creating a shallow incision. This incision forms a “registration wall” that guides the saw and later gives the chisel a crisp shoulder to work against.
A cutting gauge performs a similar function when marking baselines. It scores across the grain to define the depth of the joint. When paring to this line, the chisel drops into the scored shoulder, preventing tear-out.
Without these layout-specific dovetail joinery tools, accuracy becomes guesswork.
The Dovetail Marker (Saddle Square)
To mark consistent tail angles, a dovetail marker, sometimes called a saddle square, wraps around the board and transfers the slope cleanly across edges.
Traditional ratios are:
- 1:6 for softwoods
- 1:8 for hardwoods
These ratios balance strength and appearance. A dedicated marker ensures repeatability and keeps your angles consistent across multiple joints.
The Saw: Choosing Precision with Japanese Dovetail Joinery Tools
Once the layout is complete, the saw takes over. For hand-cut work, precision matters more than speed.
The Dozuki (Japanese Dovetail Saw)
Among modern dovetail joinery tools, the Japanese Dozuki stands out for accuracy. It features a rigid spine along the back of the blade, preventing flex and ensuring straight cuts.
Unlike Western saws, Japanese saws cut on the pull stroke. Pulling keeps the blade in tension, allowing it to be thinner without bending. The result is a whisper-thin kerf that removes less material and requires less effort.
A thinner kerf also means greater control. When cutting to a knife line, you can split the line precisely, something far harder to achieve with thicker push-stroke dovetail saws.
The saw’s role is simple: cut exactly to the waste side of the knife line. The knife determines the fit; the saw merely respects it.
The Coping Saw for Waste Removal
After cutting the tails or pins, the bulk of the waste between them must be removed. A coping saw speeds this process and preserves your chisels’ edge.
While not strictly essential, it reduces unnecessary chopping and helps protect the accuracy established during layout. Efficient waste removal keeps the workflow controlled and deliberate, a hallmark of using quality dovetail joinery tools.
The Chisels: Refinement and Fit
Once sawn, the joint is refined with chisels. This is where patience matters most.
Why Bevel-Edge Chisels Are Non-Negotiable
Standard bench chisels with thick sidewalls cannot reach into the tight corners of dovetails. Bevel-edge chisels, however, are ground thin along their sides, allowing access without bruising adjacent surfaces.
Whether you prefer European brands such as Narex or traditional Japanese chisels, the requirement is the same: sharp, fine edges capable of controlled paring.
You cannot pare a clean joint with a dull chisel. Dull tools require excessive force, increasing the risk of slipping and damaging your work. In a climate like the UAE, where hardwoods such as oak or walnut may acclimatise differently due to humidity, sharp edges become even more critical for crisp shoulders.
Proper sharpening techniques are well documented by trusted authorities such as Fine Woodworking, and maintaining your chisels is part of mastering your dovetail joinery tools.
Avoiding Undercutting
A common beginner mistake is undercutting, removing more material from the inside face than intended. While slight undercutting can help a joint seat fully, excessive removal weakens it.
Work in small increments, referencing your knife lines constantly. The layout stage protects you, if you respect it.
Workholding: Stability Before Skill
Even the finest dovetail joinery tools cannot compensate for unstable work. Boards must be clamped vertically and securely. Any vibration during sawing translates into wandering cuts.
A solid vise or dedicated workholding solution keeps the timber close to the cut line and allows you to focus entirely on accuracy. Stability is often overlooked, yet it directly affects the quality of your joinery.
The Process: Tails First or Pins First?
Woodworkers have debated this for generations. While both approaches can succeed, cutting the tails first offers a practical advantage for beginners.
By completing the tails and then placing them onto the pin board, you can transfer their exact shape using a marking knife. This “transfer method” compensates for minor sawing variations and guarantees a friction fit.
Here again, the marking knife proves indispensable. It defines the final shape of the pins more accurately than any measurement could. Among all dovetail joinery tools, it is arguably the most important.
Building Confidence with the Right Dovetail Joinery Tools

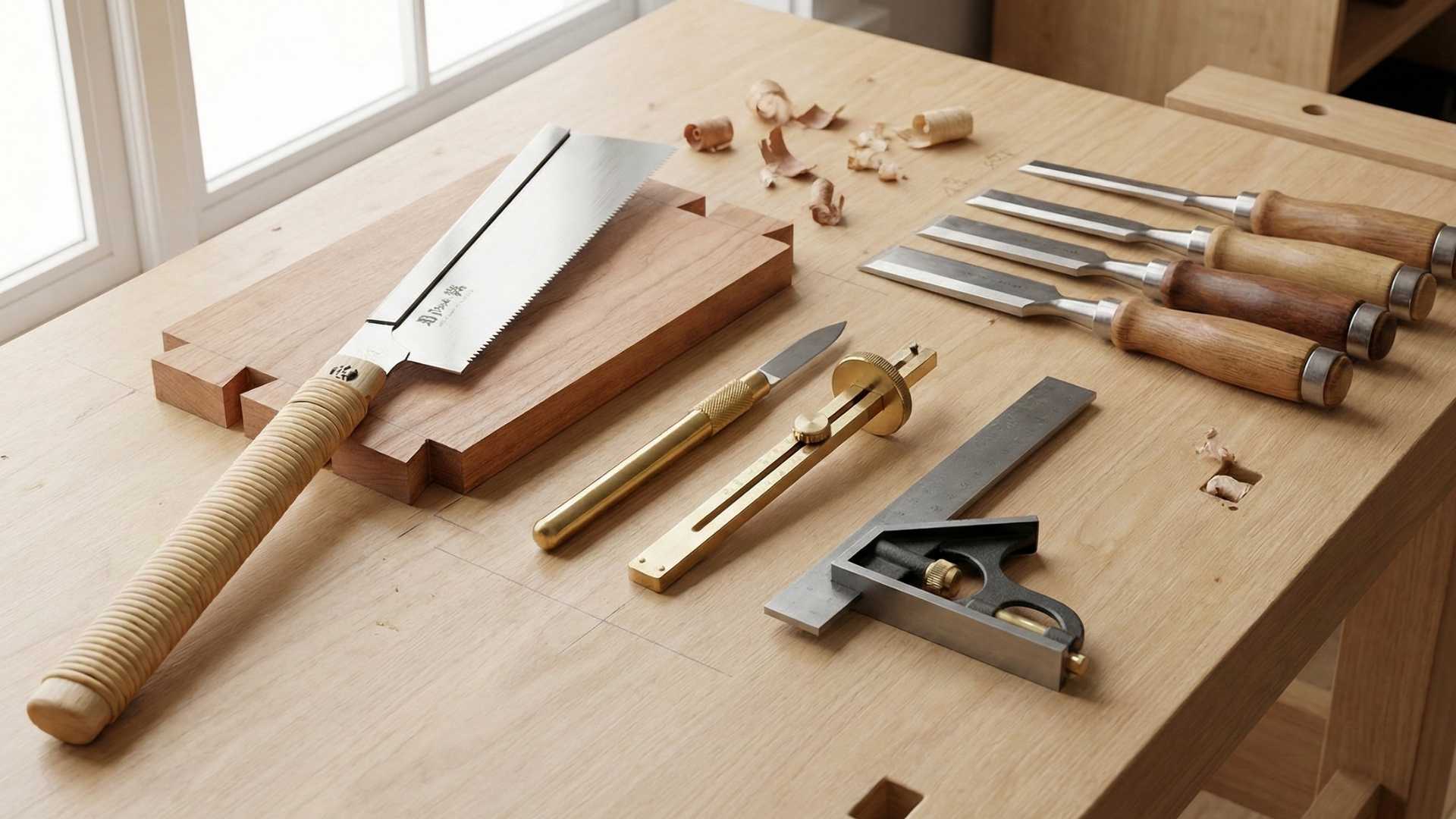

Learning to cut dovetails is less about speed and more about control. Each tool has a defined purpose:
- The marking knife establishes the final boundary.
- The cutting gauge defines depth.
- The dovetail marker ensures consistent angles.
- The Dozuki cuts cleanly on the pull stroke.
- The coping saw removes waste efficiently.
- The bevel-edge chisels refine and perfect the fit.
When these dovetail joinery tools work together, the process becomes logical rather than intimidating.
If you are ready to practise, explore our curated selection of dovetail joinery tools to build a kit designed specifically for clean, accurate joinery.
You can also discover precision layout essentials inside our Layout & Measuring Tools Collection, which complement your dovetail joinery tools and support repeatable accuracy.
The right tools do not replace practice. They remove friction from the learning process. With patience, sharp edges, and a respect for layout, dovetails become less mysterious and more methodical.
When that first joint slides together with gentle hand pressure,no gaps, no force, you will understand why generations of cabinetmakers consider this the benchmark of craftsmanship.
