If you’ve been searching for a Luban low angle block plane review that actually reflects how tools behave in Dubai heat, GCC humidity, and the “fine dust everywhere” reality of a Middle East workshop, this one’s for you. The low-angle block plane is often the first “premium-feeling” hand plane serious hobbyists buy, because it’s small, fast to set up, and instantly useful on real projects.
In this deep dive, we’ll look at the Luban (Quangsheng) low angle block plane with adjustable mouth, what it does well, where it needs attention, and whether it’s a smart purchase for tool buyers in the UAE and Saudi Arabia.
Why a Low-Angle Block Plane Makes Sense in the GCC
A low-angle block plane is designed to excel at end grain, trimming, and fine fitting. The “low-angle” part matters because many models bed the iron at 12°, and with a typical 25° bevel you get an effective cutting angle of 37°, a sweet spot for clean end-grain work.
For makers in Dubai and Riyadh, that matters because you’re often working with:
- Kiln-dried hardwoods that can feel “glassy” on end grain
- Imported lumber with inconsistent grain
- Projects that need tight fitting (boxes, frames, doors, inlays)
A good block plane becomes your “one-hand problem solver” for quick, accurate adjustments.
Quick Brand Context: Who Makes Luban Planes?
Luban-branded planes are widely associated with Qiangsheng / Quangsheng, a manufacturer that’s built a reputation for good machining and value compared to many Western premium brands.

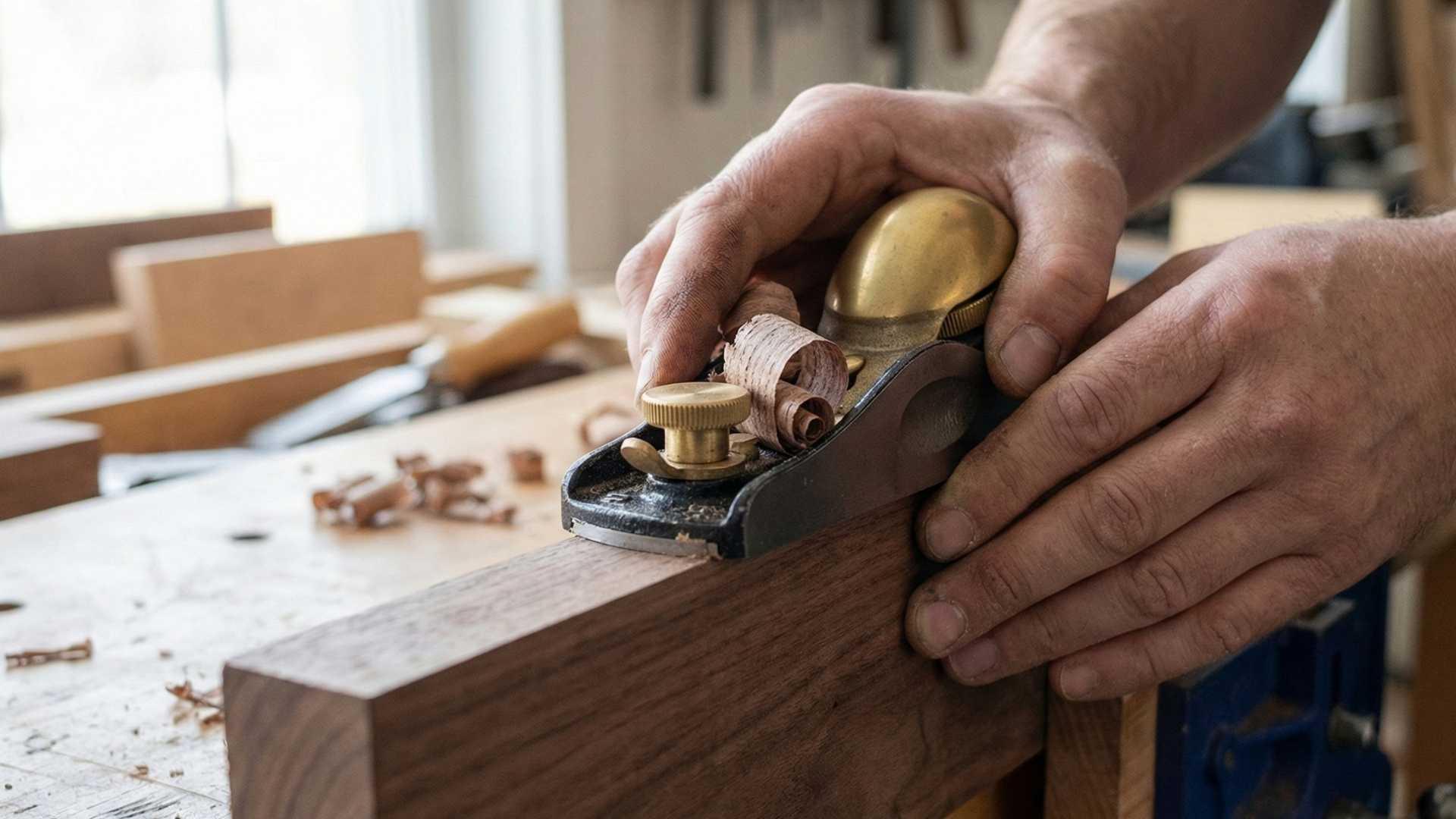

The Tool: Luban Low Angle Block Plane (Adjustable Mouth)
The model most woodworkers mean when they say “Luban low angle block plane” is the low angle block plane with an adjustable mouth, designed for both fine smoothing and more aggressive cuts by changing the mouth opening in front of the blade.
Key Design Features (What You’re Paying For)
- Adjustable mouth for dialing in fine shavings or opening up for heavier work.
- Low-angle bed optimized for end grain performance.
- Bevel-up configuration, so you can tune cutting behavior through sharpening angles.
Fit, Finish, and Machining: What to Expect Out of the Box
For serious hobbyists, the big question is: Will it need hours of flattening and fettling?
In general, Luban’s reputation is that soles are machined well and the tool can be serviceable quickly—though any plane at this price point still benefits from a basic check (sole, blade edge, and cap-iron contact). Luban’s own positioning emphasizes tight tolerances and “dead flat” machining.
What I’d Inspect Immediately (5-Minute Checklist)
- Sole flatness (quick straightedge check)
- Side squareness (important if you use it on a shooting board)
- Blade seating and adjuster smoothness
- Mouth adjustment range (should move without binding)
Blade Steel and Sharpening: The Make-or-Break Factor
Most block planes feel “okay” until the blade is sharp—then they feel amazing. A low-angle plane is especially sensitive to edge quality because it’s often used on end grain.
Sharpening Angle Guidance for Real Workshop Use
A common baseline is a 25° bevel (giving ~37° effective) which is ideal for soft to medium hardwood end grain. For tougher material, a small micro-bevel can improve durability.
GCC reality tip: If you’re planing dense hardwoods or resinous species, edge retention matters. Keep a quick touch-up stone on the bench and don’t wait until the plane starts tearing.
Performance Tests That Matter to Middle East Makers
Here’s where a low-angle block plane earns its keep.
End Grain on Small Parts
On end grain, the low-angle geometry is the main advantage—cleaner cuts with less effort compared to a standard-angle block plane.
Best uses: trimming drawer parts, box miters, small frame components, proud dovetails.
Chamfers and Edge Breaking
The adjustable mouth lets you set up for whisper-thin shavings when you want crisp, controlled chamfers—especially on hardwood where sanding can round things over too much.
Tricky Grain and “Surprise” Boards
Interlocked grain and random reversing grain show up often in imported stock. Your results will depend on:
- mouth set fine
- blade sharpness
- a slightly higher micro-bevel if needed
Setup Guide: Getting Great Results in Under 20 Minutes
Step 1: Degrease and Protect
If your plane arrives with protective oils, clean it off and add a thin rust inhibitor.
Step 2: Hone the Iron (Don’t Skip This)
Even if the blade is “sharp-ish,” refine it. A clean edge is the difference between dust and full-width shavings.
Step 3: Set the Mouth for the Job
- Fine mouth for finishing and difficult grain
- Open mouth for quick stock removal.
Step 4: Dial In a Light Cut
Advance the blade slowly and test on scrap. On end grain, lighter is usually better.
Heat, Humidity, and Rust: Middle East Maintenance Tips
Workshops in Dubai and along the Gulf can swing between AC dryness and outdoor humidity fast. Add salty air near the coast and you’ve got a perfect environment for surface rust.
Practical routine:
- Wipe down metal surfaces after use
- Store with silica gel packs (cheap, effective)
- Keep the plane in a drawer or cabinet, not open air
- Wax the sole occasionally for smoother travel
Who This Plane Is For (and Who Should Skip It)
Buy it if you’re:
- A serious hobbyist leveling up from entry-level tools
- Doing joinery, boxes, frames, cabinetry, or trim work
- Tired of sanding end grain and want cleaner results
Skip it (for now) if you:
- Rarely do fine fitting or end-grain work
- Don’t want to sharpen (a sharp plane is a system, not a one-time event)
Alternatives and How to Choose
If you’re comparing brands, focus less on marketing and more on:
- adjuster smoothness
- mouth control
- blade quality
- overall ergonomics
If you want a helpful explainer on standard vs. low-angle block planes, here’s a strong reference:
Standard vs. Low-Angle Block Planes
Where This Fits in a Smart Tool-Buying Plan
A block plane is one of the best “first premium hand tools” you can buy—especially when paired with a reliable sharpening setup.
