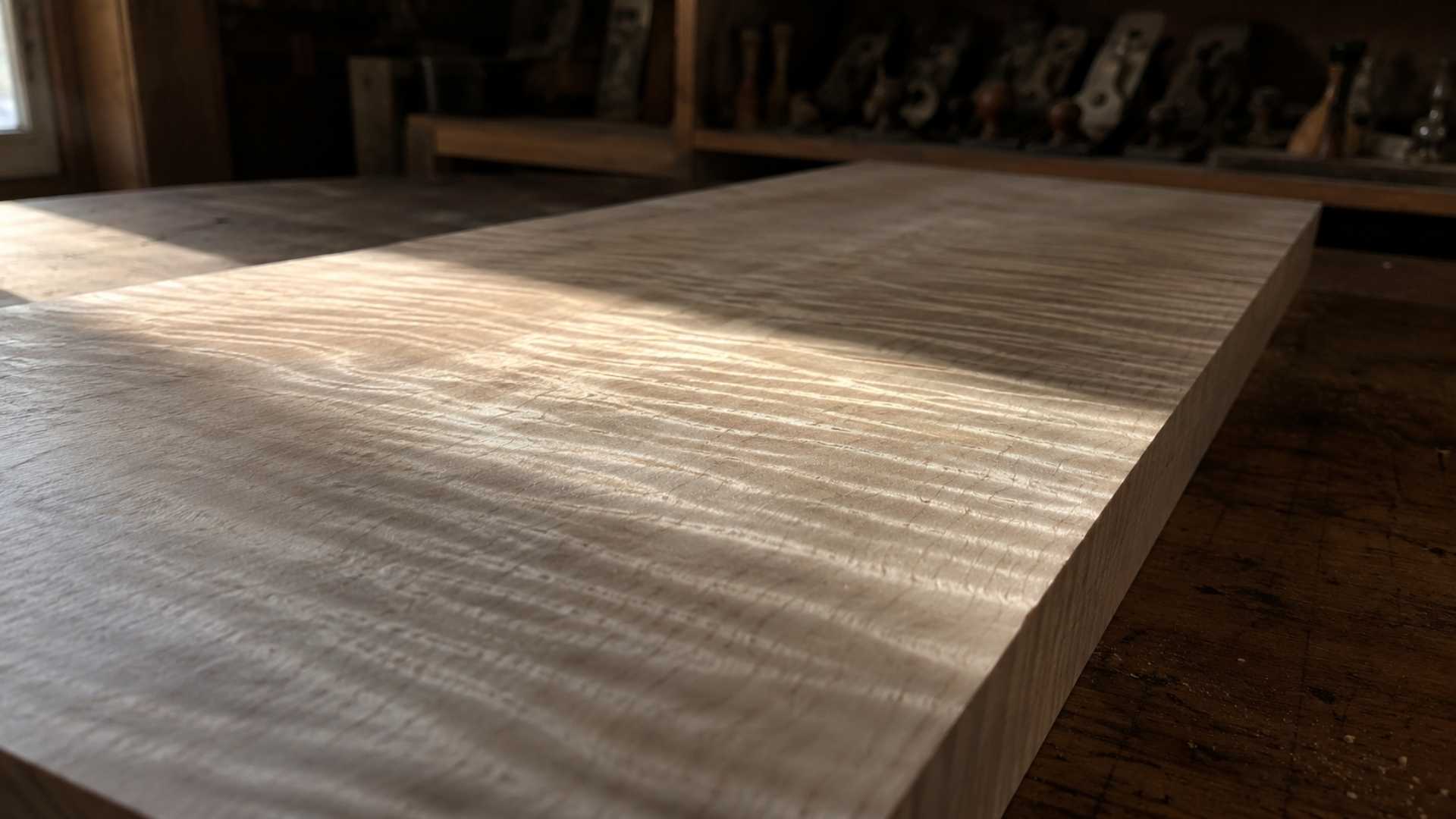

There is a moment, when sanding a freshly dimensioned piece of curly maple, when the surface seems to breathe. Tilt the board toward the light and ribbons of shadow ripple across the grain. Tilt it back and they vanish, replaced by a wash of pale silk. That optical phenomenon has a name: chatoyance — and it is one of the most compelling qualities a piece of timber can possess.
Derived from the French chatoyer, meaning to shine like a cat's eye, chatoyance in wood describes a three-dimensional, shifting luminosity produced by certain grain structures. It is not a surface treatment or a trick of polish. It is structural — it lives inside the wood itself — and understanding it changes how you select, prepare, and finish every figured board you work.
For furniture makers, luthiers, and anyone building heirloom-quality pieces, figured wood finishing is not optional knowledge. It is the difference between a handsome piece and an extraordinary one.
What Actually Causes Chatoyance in Wood
The Biology of Interlocking Grain
Chatoyance does not occur in straight-grained timber. It requires figure — specifically the kind produced when a tree's growth fibres deviate from a simple helical path and instead reverse direction at intervals, creating what botanists call interlocking or wavy grain.
In Hard Maple, this reversal produces the tight horizontal compression bands woodworkers call "tiger" or "curly" figure: alternating zones of cellular tension and compression that run perpendicular to the board's length. In Sapele, interlocking grain reversals manifest differently — as ribbon figure on quartersawn faces, where adjacent grain bands lie at opposing angles to the surface, producing alternating dark and light stripes that appear to swap tonal dominance as the viewing angle shifts.
The pattern of that reversal determines the character of the figure. In quilted maple, the undulation is broad and three-dimensional, producing a billowed, almost liquid appearance. In fiddleback sycamore, it is fine and regular, more like moiré. The underlying mechanic is the same; the visual result is entirely different.
How Light Refracts Through Figured Cells
The wood's cellular fibres act like microscopic cylinders. When they run straight, reflected light returns from all of them at the same angle, producing a flat, uniform surface. When those fibres reverse direction in waves — as they do in all figured stock — adjacent bands return light from slightly different angles simultaneously.
The result is a surface that reflects two distinct tonal values at any given viewing angle. As that angle changes, the dominant value inverts: what was highlight becomes shadow, and what was shadow becomes highlight. This is chatoyance — an internal optical contest between adjacent grain bands, producing apparent depth and three-dimensionality without any coating or optical treatment.
It is also why chatoyance cannot be faked convincingly with dye or stain. The contrast that produces the effect is structural. It can be suppressed or enhanced by finishing choices, but it cannot be applied from outside. It must be unlocked.
The Two-Angle Comparison
This two-angle comparison is one of the most instructive demonstrations in figured wood work. It illustrates precisely why chatoyance is an angular phenomenon — and why photographs of figured timber, taken from a neutral overhead angle, routinely fail to capture what makes the material exceptional.
It also has a direct practical implication. When selecting figured stock at a timber merchant, do not evaluate a board lying flat under shop lighting. Pick it up and physically move it under the light — rotate it through at least 90°. A piece that looks unremarkable at one angle may be genuinely spectacular at another, and the reverse is equally true. The board you overlook may outperform the one you paid a premium for.
Figured Wood Finishing: Techniques That Unlock Depth
Why Penetrating Oils Outperform Film Finishes
The foundational principle of figured wood finishing is straightforward: chatoyance lives beneath the surface, and anything that creates an optical barrier between the viewer and the fibre will reduce it.
Film-forming finishes — lacquer, polyurethane, conversion varnish — build a plastic layer above the wood. That layer introduces its own surface reflectance, which competes with and partially suppresses the light returning from the figured grain beneath. The finish itself catches ambient light before it can reach the cellular structure, and the result is a surface that reads as "coated." The chatoyance is still present, but it is now visible through a film rather than as the surface itself. The difference, on highly figured stock, is significant.
Penetrating oils — Danish oil, raw linseed, tung oil, and particularly pure tung diluted with citrus solvent — work in the opposite direction. They enter the cell structure rather than sitting on top of it, saturating the fibres, increasing the refractive contrast between the compression and tension bands, and leaving the surface optically open. There is no competing film. The chatoyance is not something you see through. It is the surface.
The practical consequence is this: on a board with exceptional figure, a simple oil finish will typically outperform a high-build lacquer job in visual depth, even though the lacquer represents more labour and material cost. On furniture surfaces not subject to heavy mechanical wear, this is frequently the correct trade-off.
The Role of Shellac as a Foundation Coat
For work requiring protection alongside optical depth, shellac — specifically a 1–1.5 lb cut of blonde or amber flake dissolved in denatured alcohol — is the figured wood finisher's most reliable companion.
Applied as a sealer coat, shellac penetrates deeply into both oil-prepped and bare wood, dries quickly without raising grain significantly, and creates a foundation that enhances chatoyance rather than suppressing it. Its natural amber tint adds warmth to the grain and slightly enriches the tonal contrast between figure bands. Critically, shellac creates an isolation layer that accepts virtually any topcoat: oil, wax, water-based finish, and most lacquers will bond to shellac without adhesion issues.
One important caveat: shellac is not a durable standalone finish on surfaces subject to mechanical abrasion or moisture exposure. On tabletops or work surfaces, it functions best as a foundation layer beneath a light oil-and-wax system. On vertical surfaces, cabinet interiors, or instrument bodies — where protection demands are lower — a shellac-only finish is entirely defensible and produces exceptional clarity.
Why Stains Compromise the Effect
Water-based dyes, alcohol-based dyes, and particularly gel stains are the most common finishing mistake made with figured timber, and the mechanism of that mistake is worth understanding clearly.
The chatoyant effect depends on tonal contrast between adjacent grain bands — the compression zones appearing darker, the tension zones lighter, and that relationship inverting as the viewing angle changes. Stains deposit pigment or dye molecules non-selectively: they colour the soft earlywood and the hard latewood at nearly the same rate, compressing exactly the tonal differential that the figure depends on. A curly maple board stained to resemble walnut will retain its wavy surface geometry, but it will lose most of its three-dimensional shimmer in the process. It will look figured. It will not look alive.
If colour is required on figured stock, the approach is a very thin wash of diluted dye — far thinner than the manufacturer's recommended dilution — applied before oil, so the oil's penetration and contrast-enhancing work is not undermined. This is a compromise, not a solution, and it should be tested exhaustively on off-cuts before touching the primary workpiece.
Oil on Bare Figured Sapele
[DESIGN BRIEF — SOURCE THIS IMAGE: A macro shot, approximately 1:1 to 2:1 magnification, of raw tung oil or pure Danish oil being applied to a quartersawn Sapele board by hand. A single gloved hand (or bare hand, no face visible) holds a folded lint-free cloth; the leading edge of the wet oil application is clearly visible midway across the board — left side dry, right side freshly oiled. The dry left half shows the Sapele's ribbon figure as subtle, low-contrast grey-brown stripes. The wet right half shows the figure transformed: deep, high-contrast ribbons of copper and mahogany-brown alternate under the oil, with visible three-dimensional depth — the chatoyance is palpably different from the dry half. Lighting: single-directional raking light from a low window or workshop striplight at approximately 20° to the surface, to maximise the apparent shimmer differential between the two halves. Shot on a flat workbench. Background: workshop setting, soft and out of focus.]
This image captures the single most instructive moment in figured wood finishing: the tonal transformation that occurs the instant a penetrating oil contacts figured sapele grain. Nothing that happens in subsequent finishing steps will produce as dramatic a visual shift, and nothing makes the argument for testing your finish on an off-cut more persuasively than seeing it happen in real time.
Note also what this image reveals about finish selection: the dry half is not unattractive. It simply looks like wood. The oiled half looks like the material the original tree was. That is the goal.
Climate, Stability, and Figured Timber in the UAE
A technical note that applies with particular force in the Gulf: because figured grain is, by definition, irregular — reversing, interlocking, and carrying residual cellular tension — it moves less predictably than straight-grained timber under moisture and temperature fluctuation.
In UAE interiors, where summer ambient temperatures exceed 40°C outdoors and air-conditioning drives indoor relative humidity down to 30–40% or below, that instability is not an abstract concern. Figured timber that has not been properly kiln-dried to 6–8% moisture content before processing is liable to move considerably after dimensioning — and in highly figured stock, that movement often expresses as cupping rather than simple expansion, because the tension and compression zones respond to moisture change at different rates.
Three practical rules follow from this. First, kiln-dried stock only — and verify the moisture content with a reliable meter before any milling, not after. Second, finish all faces and edges, not just the show face. Uneven sealing creates a moisture differential between sealed and unsealed surfaces; in tension-heavy figured grain, this differential can produce warping that no clamping or subsequent work will fully reverse. Third, acclimatise your figured stock in the workshop itself — not a storage room or corridor — for a minimum of two weeks before cutting. A workshop held at working humidity is the environment the finished piece will live in. That is where the wood needs to reach equilibrium.
Frequently Asked Questions
What is chatoyance in wood, and which species show it most strongly?
Chatoyance is a shifting, three-dimensional luminosity produced by interlocking or wavy grain structures that refract light differently at different viewing angles. The species that exhibit it most strongly include Hard Maple (curly, tiger, and quilted figure), Sapele (ribbon figure on quartersawn faces), Honduran Mahogany, Black Walnut, and fiddleback Sycamore. Figure intensity varies significantly between individual boards within the same species; selecting for chatoyance is a board-by-board exercise, not a species-level decision.
Does chatoyance disappear after finishing?
It depends entirely on the finish type. Penetrating oils and shellac enhance chatoyance by saturating the fibres and increasing refractive contrast without introducing a competing surface film. Heavy film-forming finishes — lacquer, polyurethane — reduce it by creating their own surface reflectance that competes with the grain's optical depth. The difference is most pronounced on highly figured stock and most visible under raking or directional light.
Why does figured wood finishing require a different approach to straight-grained timber?
Figured grain is directionally complex: the fibres are not running uniformly, which means light enters and exits the cell structure at multiple simultaneous angles. Any finish that masks or averages this complexity — by creating a surface film that catches ambient light before it reaches the grain — reduces the effect. The finishing goal with figured wood is always to clarify and deepen the grain, not to coat over it. The wood's own optical structure is the finish's most important working material.
Can I stain figured maple to match other furniture?
Technically yes. Practically, if preserving the chatoyance matters, staining is inadvisable. Stains reduce tonal contrast between grain bands, which is precisely the differential that produces the three-dimensional shimmer. If colour-matching is non-negotiable, a very dilute dye wash applied before a penetrating oil system is the least damaging approach — but test it extensively on off-cuts. The result will be coloured figured maple, not a convincing match for a dense, dark species.
Is chatoyance only visible in person, or can it be photographed?
It can be photographed effectively, but requires correct technique. Flat, direct flash eliminates the effect almost entirely by returning uniform light from all grain bands simultaneously. Raking natural or artificial light at a low angle to the surface — approximately 10–30° — creates the differential that makes chatoyance visible. Close-up framing matters too: tonal variation across grain bands is subtle at distance and striking at proximity. Shoot in RAW if possible; the tonal range is often too compressed by JPEG processing to render the figure accurately.
