Choosing the right timber species is only half the decision. The other half — the one most woodworkers and furniture buyers overlook entirely — is how that timber was cut from the log.
Two boards ripped from the same tree can behave completely differently on the workbench, at the finishing table, and in service. The milling method dictates grain orientation, dimensional stability, surface character, and long-term durability. Understanding this distinction is what separates a craftsman who buys wood from one who truly knows it.
Quarter sawn lumber has long been the hallmark of high-end furniture making. The reason is not aesthetic preference — it is mechanical principle.
How Flat Sawn Wood Is Milled
Flat sawing — also called plain sawing — is the most common and most economical way to break down a log. The mill makes a series of parallel cuts straight through the log, progressing from one face to the other.
This method produces the widest possible boards with minimal waste, which is why it dominates commercial timber production. From a yield perspective, it is the obvious choice. From a performance perspective, it involves trade-offs that become more consequential as board width increases.
The Cathedral Grain Pattern
In a flat sawn board, the growth rings run at shallow angles to the face — typically between 0 and 30 degrees. This produces the sweeping, arched grain pattern most people recognise immediately: wide cathedral curves that open and close across the face of the board.
It is visually dramatic. On certain species — walnut and ash in particular — it can be genuinely striking. But that visual character comes with a structural cost.
Flat Sawn Wood Movement and Cupping
Because the growth rings run nearly parallel to the face, moisture changes affect the board's width disproportionately. When a flat sawn board gains or loses moisture — as all timber does in response to seasonal shifts and environmental changes — it expands and contracts most aggressively across its width.
This is the direct cause of cupping. The face side and back side of the board respond to moisture at slightly different rates because they sit at different distances from the growth rings, causing the board to curl across its width. Wide flat sawn panels are particularly vulnerable: the wider the board, the greater the potential movement and the more pronounced the cup. This is not a defect — it is simple geometry, and it must be accounted for at the design stage.
Quarter Sawn Lumber: The Stable Choice
Quarter sawing begins by ripping the log into quarters along the pith, then sawing each quarter radially — with cuts angled toward the centre of the log. The result is a board where the growth rings meet the face at 60 to 90 degrees, rather than running nearly parallel to it.
That single change in geometry transforms the board's mechanical behaviour across its entire service life.
Structural Superiority
When growth rings are oriented perpendicular — or close to perpendicular — to the face, wood movement shifts from width-dominant to thickness-dominant. The board still responds to moisture changes, but it does so evenly and predictably, and the magnitude of movement across the width is dramatically reduced.
Cupping becomes essentially a non-issue. Twist and bow are less likely to develop over time. A well-seasoned quarter sawn board is as close to dimensionally stable as solid timber gets.
This is why quarter sawn oak was the default choice for Arts and Crafts furniture makers, why it remains the preferred cut for instrument soundboards, and why any serious maker building a wide tabletop, a set of cabinet doors, or a piece destined for a demanding environment specifies quartersawn stock first. Stability is not a luxury feature — it is an engineering decision.
The Cost and Yield Trade-Off
Quarter sawing produces narrower boards and generates more offcut waste than flat sawing. It is also more labour-intensive at the mill, requiring repeated repositioning of each quarter as the sawyer works toward the pith. For these reasons, quarter sawn lumber typically commands a 30 to 60 percent price premium above comparable flat sawn stock, depending on species and market.
That premium is not arbitrary. It reflects the genuine value of predictable, long-term dimensional performance. The principle that applies to hand tools applies equally here: cutting corners on the cut of your timber is a decision that compounds quietly over time — usually in the form of a joint that opens, a panel that warps, or a tabletop that cups after the first humid summer.
The Visual Reward: Ray Fleck and Tight Grain
Beyond stability, quarter sawing produces a surface character that flat sawing cannot replicate by any means.
Reading the Grain on Quartersawn Boards

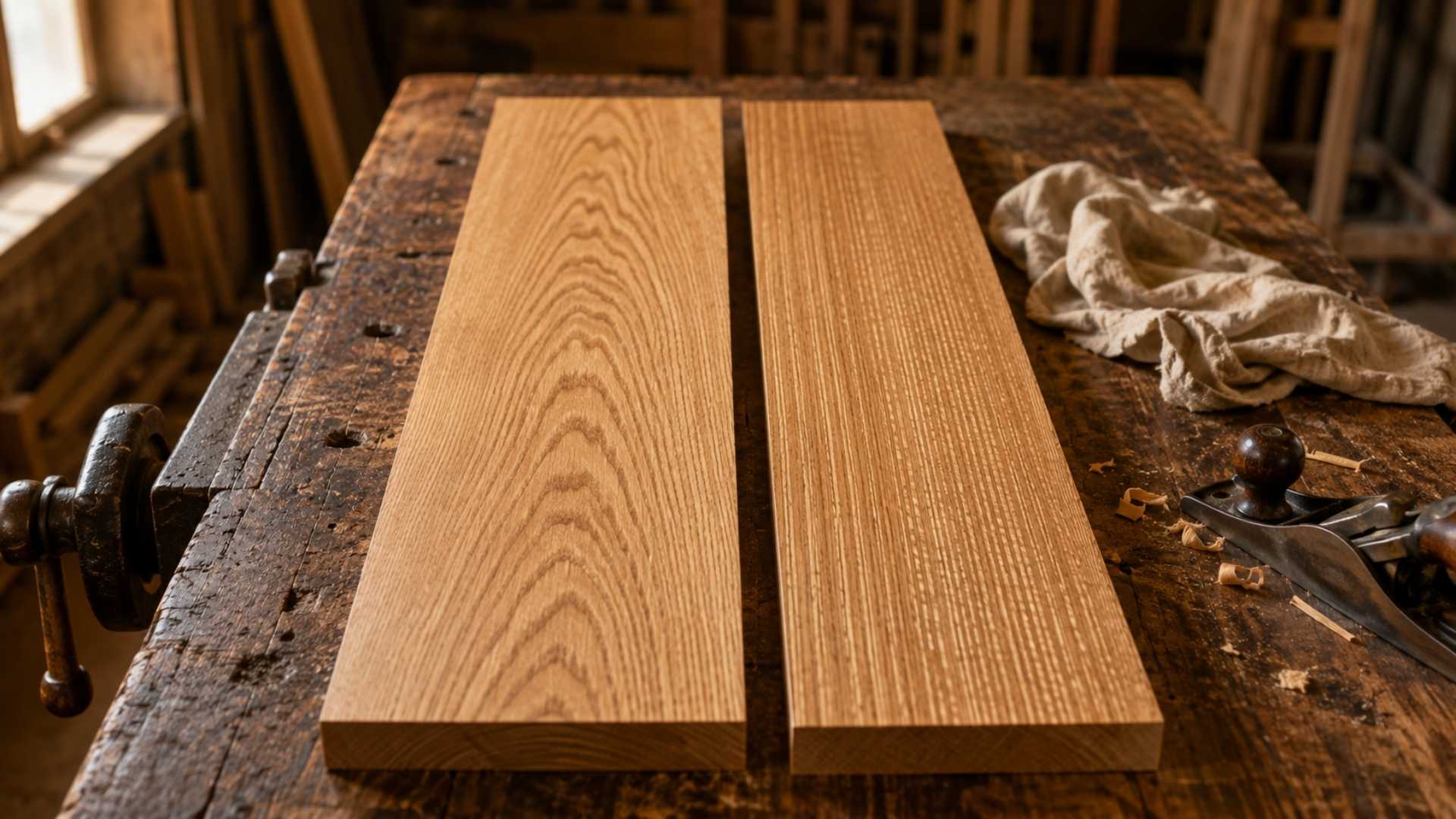

The tight, straight grain lines on a quarter sawn face are immediately identifiable. Where flat sawn boards display sweeping arches and wide cathedrals, quarter sawn boards show long, parallel lines running cleanly down the length of the board. The overall visual effect is quieter and more controlled — better suited to furniture where the joinery and form are intended to be read before the figure.
Ray Fleck: The Signature of Quartersawn Oak
In certain species — oak most famously, but also sycamore and beech — quarter sawing exposes the medullary rays: the radial cellular structures that run outward from the pith toward the bark. On a flat sawn face, these rays appear as faint, irregular dashes, cross-cut and largely buried. On a quarter sawn face, they are sliced along their length and fully exposed.
The result is ray fleck: a lustrous, silver-bronze shimmer that shifts and catches light as the viewing angle changes. It is one of the most distinctive surfaces in furniture making — immediately recognisable on period pieces, on Stickley oak furniture, and on any contemporary maker's work where the material is allowed to speak clearly.
Ray fleck cannot be achieved with stain or finish. It does not emerge from careful sanding or surface treatment. It is entirely a function of cut angle, fixed at the mill. You either have it or you do not — and you only have it with quartersawn stock.
Climate Performance and Dimensional Stability
For woodworkers and furniture makers in regions where environmental conditions are extreme, the difference between flat sawn and quarter sawn timber moves from theory into practice very quickly.
In climates characterised by intense heat, low outdoor humidity, and aggressive air conditioning cycling — the UAE and wider GCC being a pronounced example — the humidity differential between indoor and outdoor environments can swing dramatically across seasons and within a single day. Flat sawn wide panels exposed to these conditions are highly vulnerable: the repeated expansion and contraction across their width accumulates stress progressively, accelerates surface checking, and significantly increases the risk of warping and joint failure over time.
Quarter sawn timber is not immune to movement. Wood always responds to its environment. But its geometry means that movement develops more slowly, stays smaller in magnitude, and distributes itself more evenly across the board. For any piece intended to perform in a demanding climate — a wide dining table, a set of cabinet doors, a panelled piece exposed to daily air conditioning — quartersawn stock is not a luxury specification. It is the technically correct one.
Frequently Asked Questions
What is the difference between quarter sawn and flat sawn lumber? The difference is how the board is cut from the log. Flat sawn boards have growth rings running nearly parallel to the face, producing wide cathedral grain and significant width-movement with moisture changes. Quarter sawn boards are cut so growth rings meet the face at 60–90 degrees, resulting in tight straight grain, minimal cupping, and superior dimensional stability across the board's width.
Why is quarter sawn wood more expensive than flat sawn? Quarter sawing produces narrower boards and generates more waste at the mill. The sawyer must reposition each log quarter repeatedly to maintain the radial angle, making the process significantly more labour-intensive than plain sawing. The premium — typically 30–60% above comparable flat sawn stock — reflects genuine added value in long-term stability and surface character.
What is ray fleck in quartersawn oak? Ray fleck is the luminous, silver-bronze figuring that appears on the face of quartersawn oak and certain other species including sycamore and beech. It is produced when medullary rays — radial cellular structures running from pith to bark — are sliced along their length by the quartersawing process and exposed on the board face. No finishing technique can replicate it; it is entirely a function of cut angle.
Is quarter sawn wood always the better choice? For wide panels, tabletops, door panels, and any application where dimensional stability is the priority, quarter sawn is the superior specification. For narrower components, decorative elements, or applications where the cathedral grain figure is preferred, flat sawn is entirely appropriate. The choice is governed by function first, then aesthetics — and the two are not always in conflict.
Does flat sawn wood always cup? Not always, and not immediately. Flat sawn wood cups when it experiences uneven or excessive moisture exposure. Proper seasoning, correct storage, and stable interior environments all reduce the risk significantly. However, the geometry of flat sawn boards makes them inherently more susceptible to cupping than quartersawn stock, and that susceptibility increases with board width. The risk does not disappear — it is managed.
