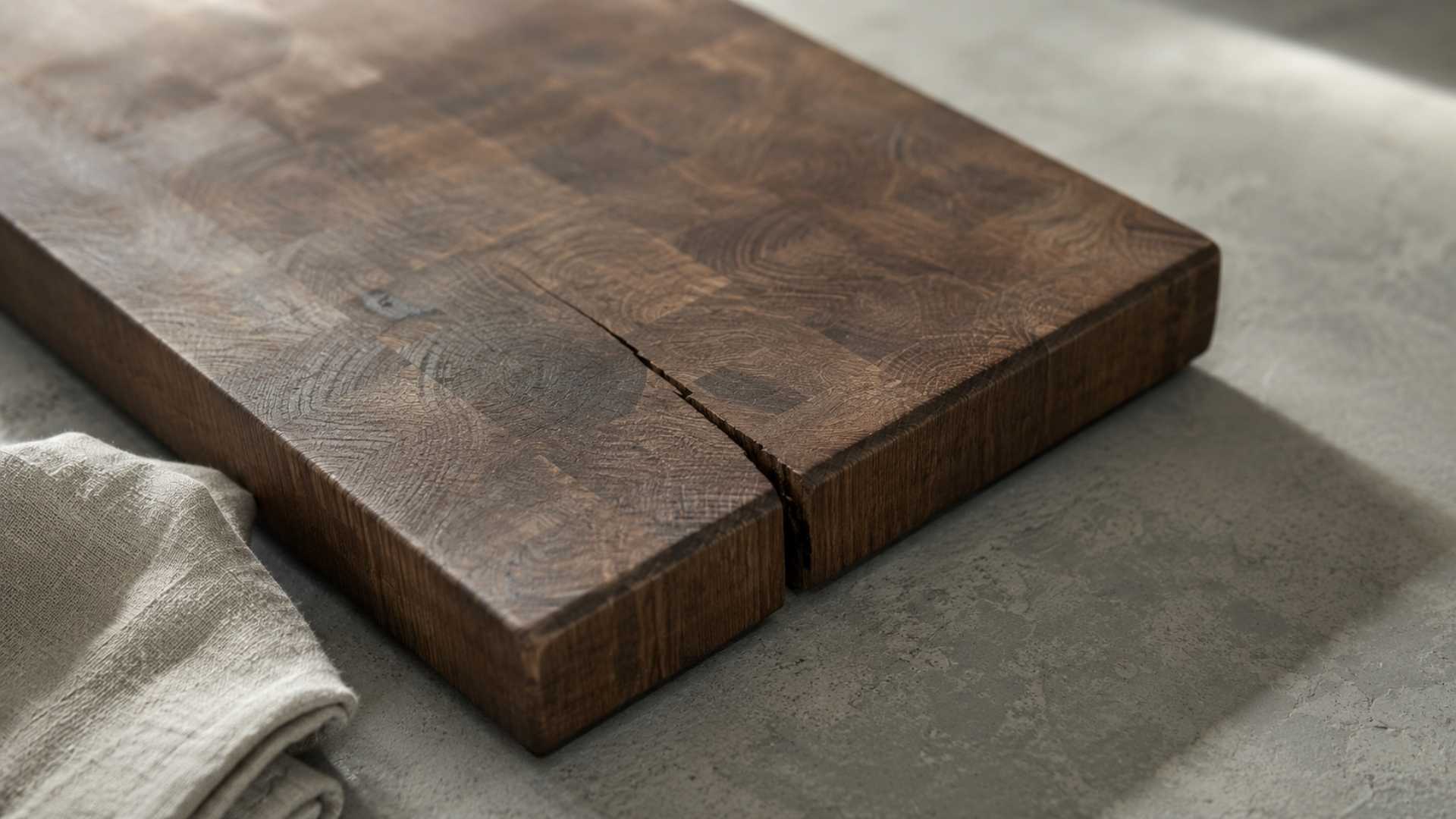

That first crack is always a surprise. One day the board is perfect — warm-toned, smooth across its face — and the next, a split has opened along the grain or a glue joint has begun to separate. Most people assume the wood was defective. It was not.
Wood is a living material, even after it has been milled, dried, and finished. It continues to exchange moisture with its environment indefinitely. A crack is not a manufacturing failure. It is a message: the board dried out faster than its fibres could accommodate, and the internal stress had nowhere to go but apart.
Understanding that shift in framing — from defect to dialogue — is the foundation of good board care.
The Mechanics of a Split: Why Wooden Chopping Boards Crack
Wood is hygroscopic. It absorbs and releases moisture in direct response to ambient humidity, and it does so unevenly — because not all surfaces of a board are structurally identical.
When moisture leaves the wood too quickly, the outer cells contract faster than the interior fibres can follow. That differential — surface shrinking while the core holds — generates tension, and tension finds the weakest route to release.
On a solid board, that route is almost always the end grain. End grain exposes the open, longitudinal channels of the wood's cellular structure directly to air, making it the fastest-drying area on any board. Think of it as hundreds of open straws standing upright: moisture wicks out rapidly, the fibres at the ends contract, and narrow splits — called checks — open parallel to the grain direction. They appear first because they dry first.
On glued-up boards, which account for the majority of quality kitchen boards, the structural weak point is the glue line. No adhesive, however well applied, can resist indefinite cycles of swelling and shrinkage. Each time a board absorbs water and dries out without oil to buffer the exchange, the joint is placed under stress. What starts as a barely visible hairline becomes a full separation within months of neglect.
The critical insight here is that both failure types — end-grain checks and joint separations — share the same underlying cause: moisture moving through the wood faster than the wood can accommodate it. Everything in board care follows from that principle.
The Culprits: Habits That Cause a Cracked Cutting Board
Soaking and Submersion
Leaving a board to soak in water — or rinsing it and setting it flat while wet — forces rapid, uneven moisture uptake. The surface layers swell immediately; the interior remains comparatively dry. That gradient stress is directly responsible for the surface checks and joint failures that appear after months of regular misuse. Even brief soaking, repeated daily, accumulates damage.
The Dishwasher
The dishwasher is the single most destructive environment a wooden board can enter, and the mechanism explains why no species or finish survives it for long. The wash cycle saturates the wood; the heated drying cycle then strips that moisture aggressively. That rapid oscillation — wet, hot, dry, repeated — delaminate a glued board and checks a solid one within a handful of cycles. The stress is not gradual wear. It is acute shock, applied repeatedly.
Drying Flat on One Face
A less-discussed mistake: leaving a freshly washed board lying flat on a counter. When only one face is exposed to air, moisture evaporates unevenly — the top dries while the bottom stays wet against the surface. That asymmetric drying can induce cupping over time, where the drying face draws taut while the underside remains swollen. Standing the board on its edge after washing — or propping it slightly to allow airflow on both faces — eliminates the problem entirely.
Neglecting the Oiling Routine
Oil does not waterproof a board. What it does is occupy the cellular spaces within the wood, slowing the rate at which moisture is both absorbed and released. A well-oiled board buffers moisture exchange; a dry board reacts to every environmental shift immediately. The difference in long-term stability is significant.
Most boards arrive with a single factory oil application — sufficient for display, not for a working kitchen. The initial conditioning period, in particular, is what determines a board's long-term dimensional stability. Skipping it means the board enters service under-protected and begins cycling moisture from its first wash.
Professional Repair Techniques: Fixing a Cracked Cutting Board
The Glue-and-Sawdust Method (Surface Cracks)
For shallow surface checks where the crack has not penetrated the full thickness, the glue-and-sawdust method produces a clean, food-safe repair. Collect fine sawdust from the same species if possible — a matching density and colour will make the fill nearly invisible. Mix the sawdust with a food-safe wood glue, or an unpigmented, fully cured food-safe epoxy, to form a stiff paste.
Work the paste firmly into the crack with a palette knife or thin blade, pressing it to the bottom of the check rather than bridging the surface. Remove all excess before it begins to set — dried squeeze-out is harder to sand level. Once fully cured — allow a minimum of 24 hours — sand the repair flush, working through 120, 180, and 220 grit in sequence. Finish with two or three applications of food-grade mineral oil or board butter, allowing full absorption between coats.
On tight cracks, the result is nearly invisible. On wider checks, the fill will be visible but stable and hygienic. The key test before using the board again: run a fingertip across the repair. If there is any ridge or gap, continue sanding and re-oiling.
The Rip-and-Reglue Method (Structural Splits)
When a glue joint has fully separated, or a crack runs the full depth of the board, surface filling is not a structural repair — it is cosmetic. The board must be ripped apart at the failure point, the faces re-prepared, and the joint rebuilt properly.
Use a hand saw or table saw to cut cleanly through the damaged joint. This is often easier than it appears, because a failed glue line guides the saw naturally. Plane or sand both mating faces flat before regluing — any bow or hollow will produce a gap that no amount of clamping pressure can close. Apply a food-safe PVA wood glue evenly across both faces, bring them together, and clamp with even pressure distributed along the full length of the joint. Leave clamped for a minimum of 12 hours; longer in cool or humid conditions.
Once unclamped, flatten the board's faces with a hand plane or belt sander, then re-finish with oil. A rip-and-reglue repair, done properly, produces a joint at least as strong as the surrounding wood. The board does not need to be discarded. It needs to be rebuilt.
One note on adhesive choice: use a dedicated food-safe woodworking PVA (such as Titebond III), not a general-purpose household glue. The distinction matters for both food safety and long-term moisture resistance.
Climate, Stability, and the Boards in Your Kitchen
Wood responds to its environment, and some environments are significantly more demanding than others.
In the UAE and across the GCC, boards face a moisture stress that most care guides are not written for. Outdoor temperatures exceed 45°C in summer; air-conditioned interiors are kept at 20°C or below. That differential — and the very low relative humidity that air conditioning creates — means boards are losing moisture continuously whenever they are indoors. Moving a board from a dry, cool kitchen to a warm outdoor table and back within hours imposes the same cycling stress as parking it next to a fireplace: rapid moisture loss followed by rapid uptake, repeatedly.
The result is that end-grain checks and joint separations appear faster here than in temperate climates — not because the boards are inferior, but because the environment is simply harder on wood. A board that would last years with occasional oiling in a northern European kitchen may show stress within months in Dubai if treated the same way.
Boards in Gulf conditions require correspondingly diligent maintenance: more frequent oiling, immediate drying after washing (never flat — stand the board on edge), and storage away from direct AC vents, stovetop heat, or prolonged window light. The care principles are universal; the frequency in the Gulf is simply non-negotiable.
Frequently Asked Questions
Why is my wooden chopping board cracking at the ends?
End grain dries faster than face or edge grain because the wood's longitudinal cellular channels are exposed directly to air, rather than presenting a cross-section. When moisture loss at the ends outpaces the rest of the board — due to low humidity, direct heat, or insufficient oiling — the fibres contract and checks open parallel to the grain. Regular end-grain oiling and controlled, even drying prevent this. If checks have already appeared, address them with the glue-and-sawdust method before they deepen.
Is a cracked cutting board still safe to use?
It depends on the severity. Hairline surface checks can be repaired and the board returned to safe use, provided a food-safe filler is used, the surface is re-sanded flush, and the board is re-oiled thoroughly. A board with deep structural splits — particularly along a glue line — should not be used until properly repaired, as cracks of any depth can harbour bacteria that survive washing. When in doubt, assess with a fingernail: if you can feel the crack catch, it needs attention before the board goes back into service.
How often should I oil a wooden chopping board?
A new board should be oiled daily for the first two weeks — one coat, allowed to absorb fully before the next is applied. This initial conditioning period is critical: it fills the cellular structure before the board sees any water, establishing the moisture buffer that determines long-term stability. After that, once a month is the standard for a board in regular use. Boards kept in dry, air-conditioned environments — or used daily — benefit from more frequent application. The practical test: if the wood looks pale or feels rough to the touch, it is due for oil.
What oil is safe to use on a chopping board?
Food-grade mineral oil is the most widely recommended choice — it is odourless, tasteless, and does not oxidise or go rancid. Board butter (a blend of beeswax and mineral oil) adds a light surface barrier on top of the oil penetration, providing additional short-term water resistance. Avoid all culinary oils — olive oil, coconut oil, vegetable oil — regardless of how food-safe they seem. They contain organic fatty acids that oxidise over time, turning the board rancid and producing off-flavours.
Can I repair a chopping board that has split along a glue line?
Yes, and it is worth doing properly rather than discarding a quality board. A separated joint can be ripped cleanly at the failure line, both faces re-flattened, and the joint rebuilt with food-safe PVA clamped under even pressure. When done correctly, the repaired joint is structurally sound — often stronger than the original, because the re-prepared faces are cleaner and flatter than the original machined surfaces. See the full method above.
Want to Build Your Own Heirloom Board?
Start by understanding your materials. A well-made cutting board begins with species selection, grain orientation, and the right finish — not just assembly. Our free Wood Species Guide covers the timber properties that matter most for kitchen work: hardness, pore structure, movement, and food safety.
